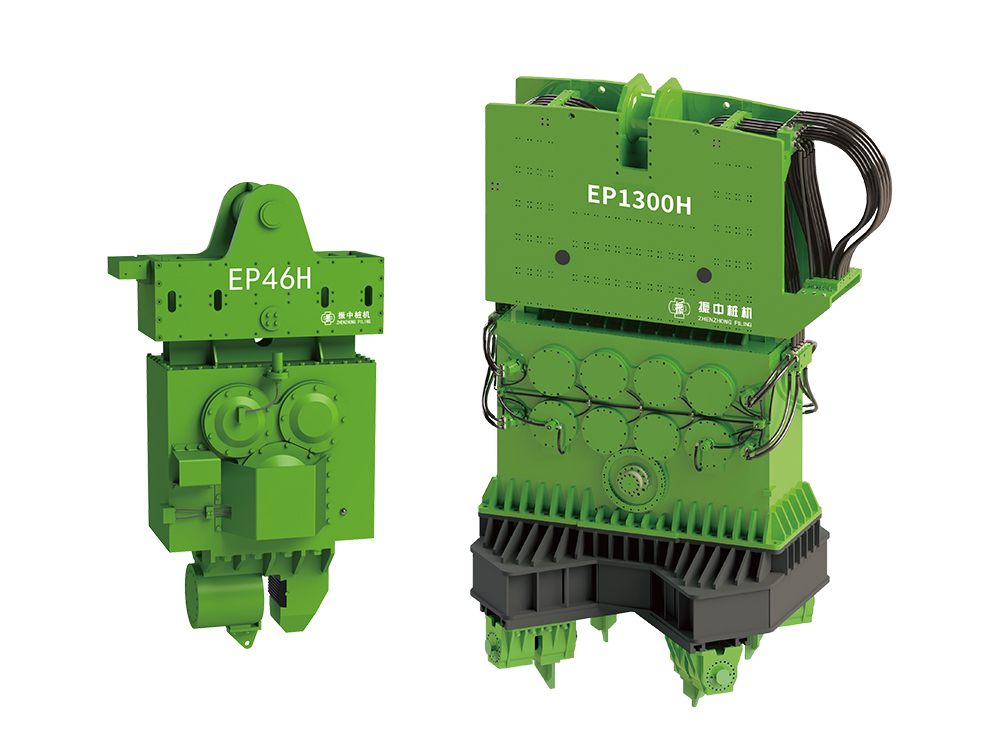

EPH resonance-free variable frequency and torque hydraulic vibration pile hammer

EPH resonance free Hydraulic Vibro Hammer series are developed by our company and Institute of Building Mechanization Beijing Academy of Building Research. This series combine simple design and user-friendliness. Due to vibration frequency and amplitude the hammers enable to significantly reduce or eliminate soil resistance by transferring vibration to sheet, tube or other piles. Precision cast high density eccentric moment combined with a low mass transmission provides the maximum possible pile amplitude. The hydraulic power station minimizes preliminary works due to simple installation and includes a fully-fledged control unit.

Product Consultation

Product Introduction

EPH resonance-free variable frequency and torque hydraulic vibratory pile hammer is a new series of products jointly developed by our company and Beijing Institute of Construction Mechanization. It is one of the most advanced vibratory pile hammers at home and abroad.

The biggest feature of the EPH resonance-free variable frequency and torque hydraulic vibratory pile hammer mechanism is the use of hydraulically controlled eccentric conversion devices to enable the vibratory pile hammer to steplessly adjust the eccentric torque from zero to the designed maximum value during start-up, shutdown and operation. The hydraulic power station is equipped with a variable pump to enable stepless adjustment of the vibration frequency.


Product Advantages

EPH resonance-free variable frequency and torque hydraulic vibration pile hammer realizes stepless variable frequency and torque, and is easy to operate, low in noise, and can adapt to the requirements of pile sinking in different soil layers, showing great superiority.


Product Parameters

Project

Unit

EP8H

EP14H

EP46H

EP92H

EP220H

EP300H

EP550H

EP1300H

Eccentric mass moment

kg*m

0-8

0-14

0-46

0-92

0-220

0-300

0-500

0-1300

Maximum speed

rpm

2400

1800

1400

1400

890

820

830

830

Maximum Exciting force

t

0-53

0-51

0-100

0-200

0-195

0-225

0-385

0-1000

Allowable pile pull force

t

26

26

60

120

90

180

180

500

Rated pressure

MPa

31.5

31.5

28

31.5

31.5

35

35

35

Maximum flow

L/min

195

191

463

796

762

1011

1600

3430

Maximum hydraulic power

kW

105

102

216

418

400

572

840

2000

Vibrating mass

Without clamp

kg

2000

3369

6718

9826

15000

19000

33000

74000

Total mass

kg

2850

4692

8470

12980

21000

25000

45000

10000

Long

mm

1405

1441

1942

2776

2570

2700

3500

4700

Width

mm

980

1034

1276

1404

1890

1880

2160

2000

High

mm

2270

2145

2469

2473

3760

4710

5340

6308


Application Scope

Vibration sinking prefabricated engineering piles (steel pipe piles, concrete piles), cast-in-place pile construction, can also be used for sinking and pulling temporary support (steel pipe, steel plate) piles, and foundation improvement engineering construction, and can be used for drilling and pile planting in conjunction with the double casing method.
